ig-Fusion™ Cloning Kit
Intact Genomics propriety ig-Fusion™ cloning technology is a simple, rapid, and highly efficient cloning kit that allows you to directly clone any PCR product(s) to any linearized expression vector at any site. The PCR fragments can be generated by Intact Genomics high-fidelity Pfu DNA polymerase or other high-fidelity DNA polymerases, with primers having 15 to 18 bases of homology at their linear ends to where the product needs to fuse. The linearized vector can be generated by PCR or restriction enzymes. The cloning kit is so robust that multiple DNA fragments can be assembled simultaneously and cloned into one construct in a single reaction step. Cloning takes a short amount of time (usually 10-30 min) with more than 95% efficiency.
Price range: $227.00 through $1,349.00
Related products
-
MSU440 Agrobacterium Chemically Competent Cells
Price range: $366.00 through $778.00 Select options This product has multiple variants. The options may be chosen on the product page -

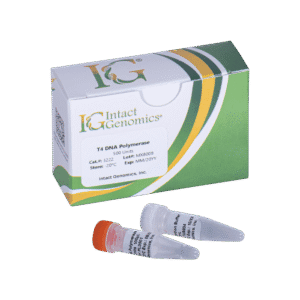

T4 DNA Polymerase
$180.00 Select options This product has multiple variants. The options may be chosen on the product page -
ATCC15834 Agrobacterium ElectroCompetent Cells
Price range: $366.00 through $778.00 Select options This product has multiple variants. The options may be chosen on the product page -
K599 Agrobacterium Chemically Competent Cells
Price range: $335.00 through $747.00 Select options This product has multiple variants. The options may be chosen on the product page -
ATCC15834 Agrobacterium Chemically Competent Cells
Price range: $366.00 through $778.00 Select options This product has multiple variants. The options may be chosen on the product page
Product Description
Applications
- Clone any insert at any site within any vector
- Restriction enzyme and phosphatase-free system
- Joining multiple large fragments at once
- Precise insertion at a desired orientation
- Rapid and high efficiency with > 95% positive clones
Product Components and Storage
5x ig-Fusion™ enzyme premix: -20 ºC
2x PCR premix: -20 ºC
High efficiency competent cells: -80 ºC
*5x ig-Fusion™ enzyme premix also sold separately*
Technical Support
Intact Genomics is committed to supporting the worldwide scientific research community by supplying the highest quality reagents. Each new lot of our products is tested to ensure they meet the quality standards and specifications designated for the product. Please follow the instructions carefully and contact us if additional assistance is needed. We appreciate your business and your feedback regarding the performance of our products in your applications.
4111 4115 4117
You must be logged in to post a review.
- Linearize the vector by restriction enzyme digestion or inverse PCR and purify the product with spin column.
- Design PCR primers for the gene of interest with 15 to 18 bp at 5’-extensions that are complementary to the ends of the linearized vector.
- Amplify the gene of interest with Intact Genomics 2x PCR premix or any other high fidelity DNA polymerase. Run the PCR product on an agarose gel to determine the integrity of the PCR product.
- Purify the PCR product with spin column.
- Set up the ig-Fusion™ cloning reaction as follows: Insert and vector molar ratio 3:1 produce the highest number of colonies.
- Mix the reaction mixture thoroughly.
- Incubate the reaction mixture at 50 °C for 10-30 min, then place on ice. Number of colonies depend on the incubation time, insert size and number of inserts need to clone.
- Use 2.0 µl of the reaction mixture and transform into high efficiency ig™ 10B chemical or electroporation competent cells (included). To get the maximum number of colonies, we recommend to use ig™ 10B electrocompetent cells (Cat # 1212).
Manual – ig-Fusion™ Cloning Kit
2024_ig-Fusion-Cloning-Kit (1)” target=”_blank”>MSDS – ig-Fusion Enzyme PreMix
