Cas9 Nuclease

$95.00$495.00

Intact Genomics Cas9 Nuclease is the purified recombinant Streptococcus pyogenes Cas9 enzyme containing a nuclear localization signal (NLS).


    40 µg (1600ng/µl) - $95.00 (Cat.# 3270 )

    80 µg (1600ng/µl) - $134.00 (Cat.# 3273 )

    400 µg (1600ng/µl) - $495.00 (Cat.# 3276 )

Description

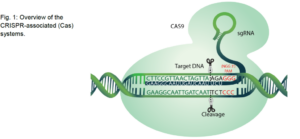

Clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated (Cas) systems provide bacteria and archaea with adaptive immunity against viruses and plasmids by using CRISPR RNAs (crRNAs) to guide the silencing of invading nucleic acids (1). The CRISPR system consists of a short non-coding guide RNA (sgRNA) made up of a target complementary CRISPR RNA (crRNA) and an auxiliary transactivating crRNA (tracrRNA). The sgRNA guides the Cas9 endonuclease to a specific genomic locus via base pairing between the crRNA sequence and the target sequence, and cleaves the DNA to create a double-strand break. The location of the break is within the target sequence 3 bases from the NGG PAM (Protospacer Adjacent Motif) (1). The PAM sequence, NGG, must follow the targeted region on the opposite strand of the DNA with respect to the region complementary sgRNA sequence (Fig.1).

Cas9 Nucelase image

Intact Genomics Cas9 Nuclease is the purified recombinant Streptococcus pyogenes Cas9 enzyme containing a nuclear localization signal (NLS) at the C-terminal for targeting to the nucleus. This enzyme is designed to perform CRISPR/Cas9-mediated genome editing (1, 2). The physical purity of this enzyme is ≥98% as assessed by SDS-PAGE with Coomassie® blue staining (Fig. 2).

1a

Product Source

E. coli BL21 (DE3) strain expressing a Cas9 gene from Streptococcus pyogenes with an N-terminal 6xHis tag and C-terminal SV40 nuclear localization signal (NLS).

Product Includes

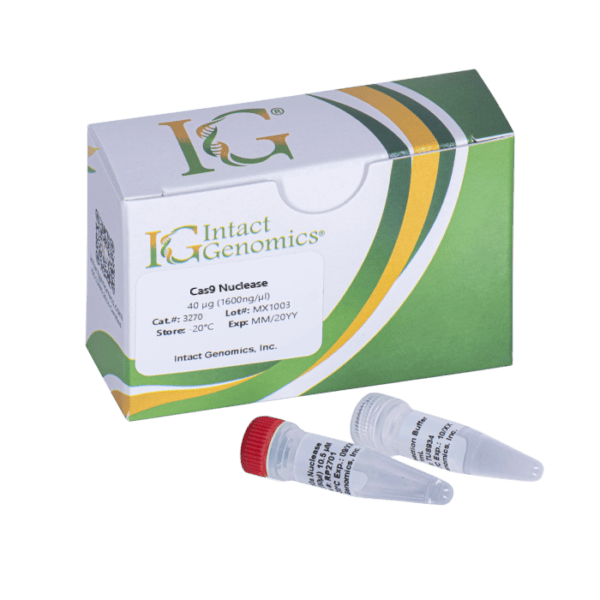

  1. Cas9 Nuclease
  2. 10x Cas9 Nuclease Reaction Buffer

Storage Temperature

–20 °C

Storage Buffer

50 mM Tris-HCl, 50 mM KCl, 1 mM DTT, 0.1 mM EDTA, 50% Glycerol, pH 7.5 @ 25 °C

1x Cas9 Reaction Buffer

20 mM HEPES, 100 mM NaCl, 5 mM MgCl2, 0.1 mM EDTA, pH 6.5 @ 25 °C

Quality Control Assays

Cas9 nuclease is free from detectable RNase, Endonuclease (nicking) and non-specific DNase activities. 3272, 3270, 3273, 3276

Additional information

pmol

40 µg (1600ng/µl), 80 µg (1600ng/µl), 400 µg (1600ng/µl)

Cas9 Nuclease functional testing was done by in vitro DNA cleavage assay with the following protocol which gives more than 95% digestion of the substrate DNA as determined by agarose gel electrophoresis.

Note: The below protocol is for 160ng/µl Cas9 nuclease.  When utilizing 1,600 ng/µl Cas9 Nuclease, dilution with storage buffer (available upon request) is needed if the below protocol is to be followed. Your protocol may vary depending on application and no dilution may be required.

  1. Set up 30 µl reaction in a microcentrifuge tube on ice with the following combinations.
  2. Gently mix the reaction mixture and centrifuge briefly.
  3. Incubate at 37 °C for 60 min.
  4. Add 1 µl RNase (4 mg/ml)
  5. Incubate at 37 °C for 20 min.
  6. Run 0.7 to1% agarose TBE gel.

Manual -Cas9 Nuclease

MSDS - ig Cas9 Nuclease
